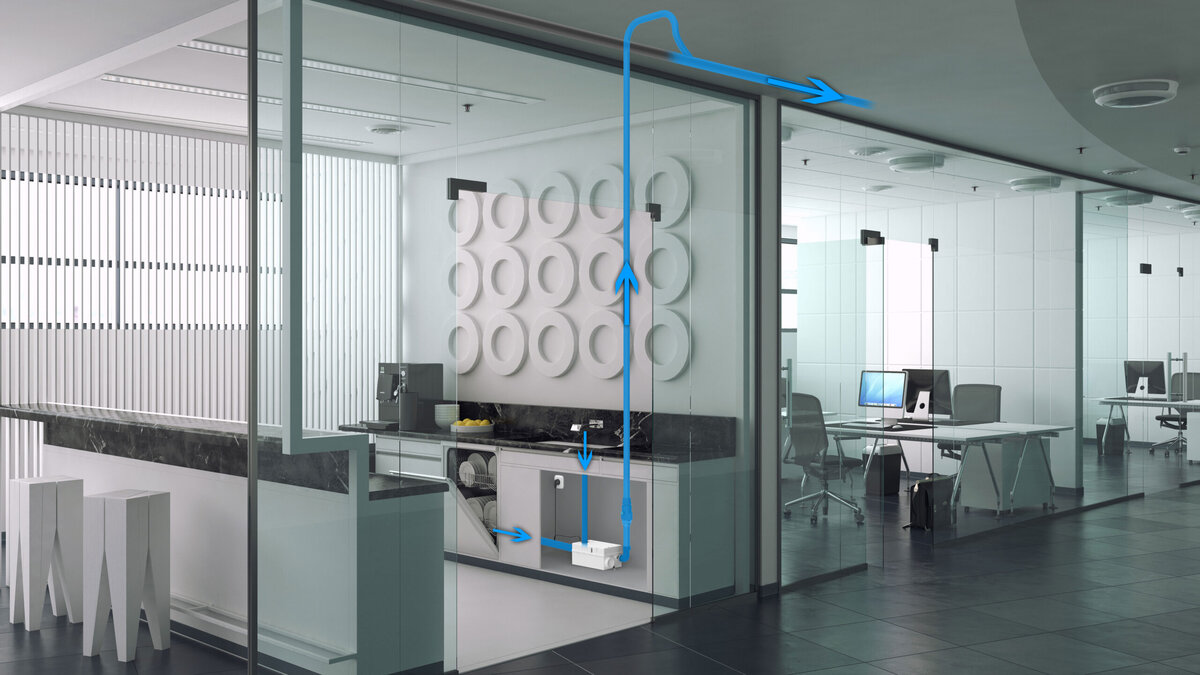

![When a smaller wastewater pumping systemis needed due to space restrictions!](https://developer-update.co.uk/wp-content/uploads/sites/5/2023/07/Hebefix-Mini-in-situ-scaled.jpg)
Often one of the biggest problems when installing a reliable wastewater pumping system is space!

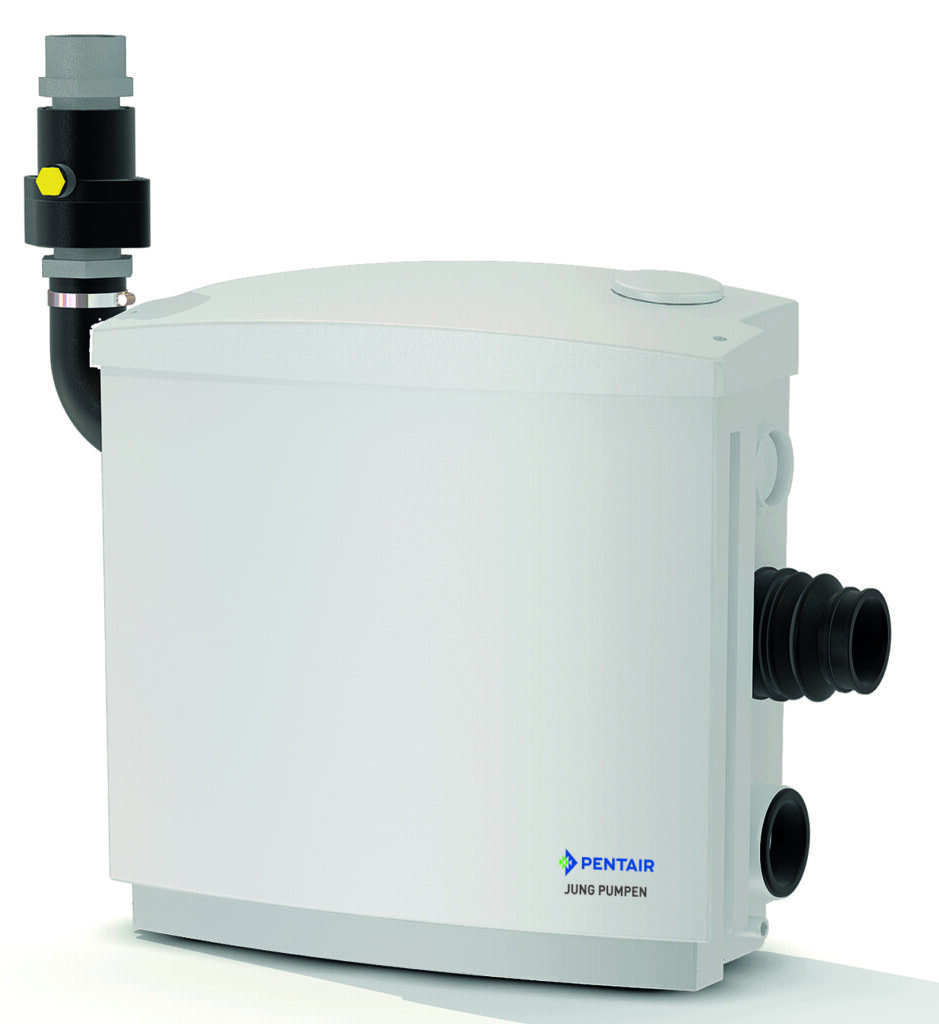

The Jung Pumpen Hebefix Plus, available from Pump Technology Ltd, based in Berkshire, is suitable for commercial buildings and can be fitted neatly in all pre-walled systems or cavities due to its small tank depth of 183mm. The tank is “pressure tight” to assure the pumping system never floods even in the unlikely event of a breakdown. Additionally, it will easily fit perfectly under washbasins and counters.
The tank is manufactured from high quality ABS plastic (Acrylonitrile Butadiene Styrene) which is rigid in design and will provide long life. ABS plastics are also fully recyclable.
![](https://developer-update.co.uk/wp-content/uploads/sites/5/2023/07/Hebefix-Plus-cutaway.png)
![](https://developer-update.co.uk/wp-content/uploads/sites/5/2023/07/Hebefix-Plus-939x1024.jpg)

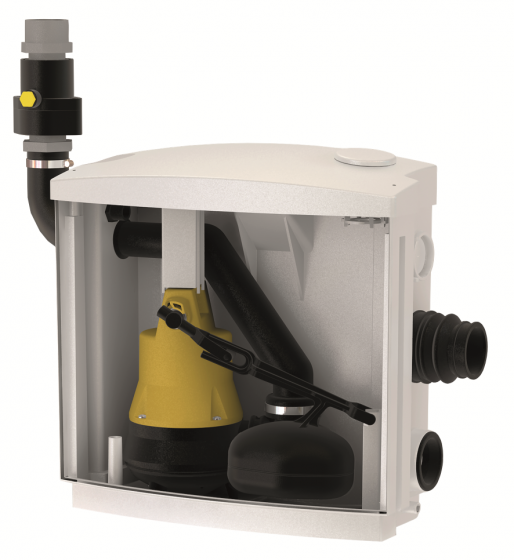

The Hebefix Plus utilises the Jung Pumpen U3 submersible pump and can pump up to 6m head making it suitable for wastewater applications. The pump has a small flushing devise that prevents deposits build up within the tank.
A maximum of three appliances such as sinks or washing machines can be connected and because the bottom inlet is just 75mm centre to floor, the unit can also be used for a shower tray waste application.
The Hebefix Plus also comes with its own runtime monitor and high-level acoustic alarm with a potential volt free contact for connection of a remote alarm or BMS.
With its integrated ventilation and non-return valve the Hebefix Plus is ready-to-install straight out of the box.
Pump Technology Ltd, are authorised by Jung Pumpen GmbH and are now the largest supplier of Jung Pumpen equipment in the UK. These include systems with duty standby pumping configurations, pumps rated for continuous operation at high fluid temperatures of up to 90°C and versions for light chemical applications, typically laboratories, hairdressers, janitor sinks or similar.
In their warehouse in Berkshire they hold large stocks of Jung Pumpen equipment, which means that orders placed before 3pm qualify for next day UK mainland delivery. It is also possible to collect goods from their warehouse.
With over 30 years’ experience customers can rely on the team at PumpTechnology Ltd to assist with the correct wastewater pumping system for every application.
Pump Technology Ltd also has a dedicated Jung Pumpen department which means that their knowledge of applications and products will always ensure the best technical and commercial solution.
The company also supports contractors and end users with commissioning and maintenance services nationwide.
Pump Technology Ltd
01189821 555
www.pumptechnology.co.uk
